American DJ UBL6H Overview

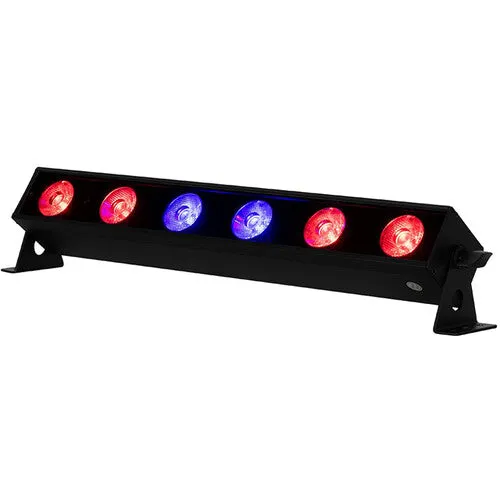

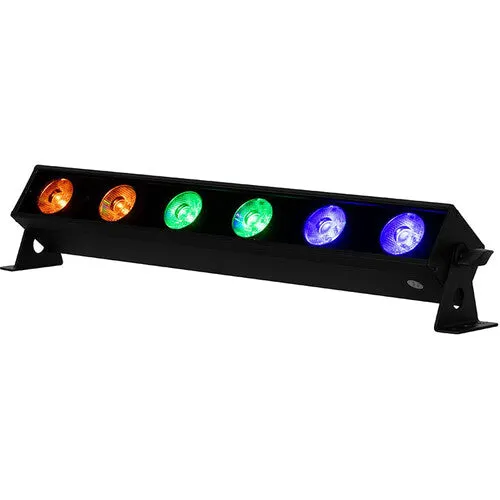

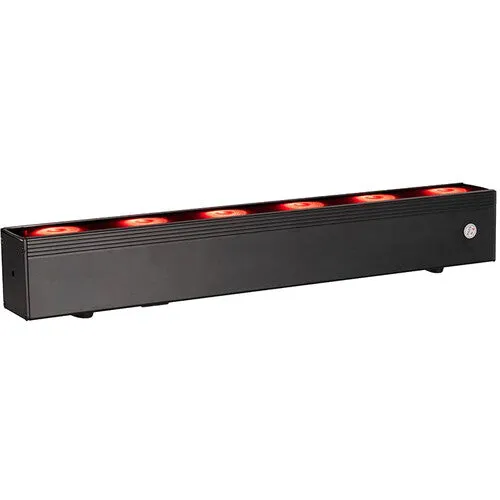

Craft captivating displays on walls, floors, and ceilings with the American DJ UBL6H, a 22.5" versatile LED linear fixture with six 20W, 6-in-1 HEX LEDs (RGBAL UV) well suited for uplighting, downlighting, stage washing, and dancefloor illumination. The inclusion of the lime LED chip allows for a high CRI of >90, which ensures the fixture�s output will render colors accurately when used to illuminate scenery, décor, and people.
The LEDs are arranged into three independently controllable groups of two, allowing for smooth color mixing, while creating a wide variety of hues and shades. Additionally, the fixtures can also be used to generate white light output with color temperature variable between 2300 and 9900K. For even more versatility, the UV element allows the creation of a "blacklight" effect, causing white and neon colored décor and clothing to glow when used alone. The UBL12H comes complete with an indoor locking power cord, UC-IR24 remote, and a 20° diffusion filter.
- Ultrabright, 22.5" indoor linear bar with 6 x 20W ultrabright HEX (RGBAL UV 6-in-1) LEDs
- Long-life LEDs (rated at approximately 50,000 hours)
- Linear color temperature control (2300 to 9900K)
- Smooth RGBAL UV color mixing
- OLED display with 4-buttons
- 7 DMX channel modes: 6, 11, 13, 16, 18, 25, and 28 channels
- RDM Compatible
- 3 groups of two, RGBAL UV LED pixels controllable via DMX in 18, 25, and 28 channel modes
- 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL UV Manual, and DMX-512 Mode
- LED refresh rate: 1.9 kHz
- 64 built-in color macros
- 6 selectable Dim modes (Standard, Stage, TV, Architectural, Theatre, and Stage 2)
- 4 selectable Dim curves (Square, Linear, Inv. Square, and S. Curve)
- Built-in microphone for sound trigger
- Pulse and strobe effect
- Electronic dimming: 0-100
- Built-in horizontal magnetic alignment feature

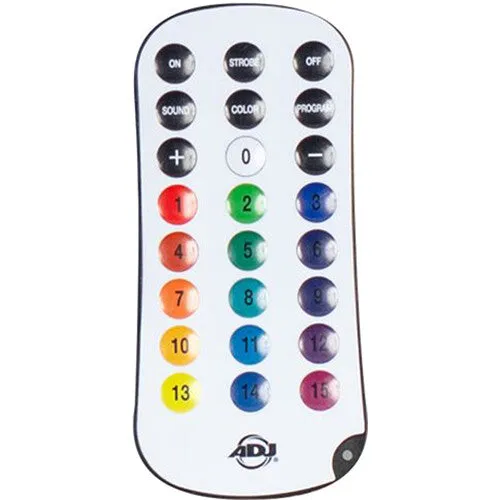

- Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8'
In the Box
- American DJ UBL6H RGBAL UV Linear Light Bar with Diffusion Filter (6 LEDs)
- Indoor Locking Power Cord
- UC-IR24
- 20° Diffusion Filter
- 2 x Mounting Brackets
- Limited 2-Year Manufacturer Warranty
Additional Resources
User Manual
1.6 MB
American DJ UBL6HSpecs
| Fixture Type | Linear/Bar Light |
| Light Source | 6x Color/UV LED - 20 W |
| Colors | Amber, Blue, Green, Lime, Red, Ultraviolet |
| Pixel Configuration | 3x Zone |
| Beam Angle | 17° 20° (with Filter) |
| Control Protocols | DMX512, Internal |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| Power / Current Consumption | 26 W |
| Mounting | Mounting Bracket |
| Fixture Type | Linear/Bar Light |
| Light Source | 6x Color/UV LED - 20 W |
| Expected Lamp Life | 50,000 Hours |
| Colors | Amber, Blue, Green, Lime, Red, Ultraviolet |
| Pixel Configuration | 3x Zone |
| Color Temperature | 2300 to 9900K |
| Beam Angle | 17° 20° (with Filter) |
| Shutter / Strobe | Electronic |
| Dimming | Electronic, 0 to 100% with 6 Dimmer Modes |
| Operating Modes | Automatic, Program, Sound-Active, Static Color |
| Macros / Programs | 64x Color Macro |
| Effects | Strobe |
| Gobos | No |
| Refresh Rate | 1.9 kHz |
| Control Protocols | DMX512, Internal |
| DMX Channel Modes | 7 Mode(s): 6 / 11 / 13 / 16 / 18 / 25 / 28-Channel |
| Display / Controls | OLED / 4-Button |
| Remote Control | IR Remote (with Included Equipment) |
| Mobile App Compatible | No |

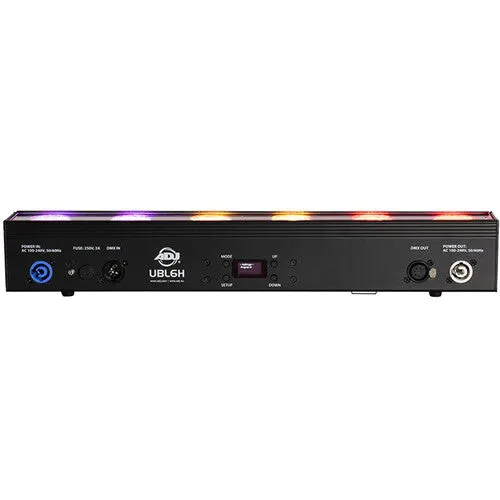

| Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Wireless | No |
| Wireless Range | 32.8' / 10 m (with Optional Equipment) |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1x powerCON Output: 1x powerCON Plug Type: NEMA 5-15 Cord Length: 6' / 1.83 m |
| Power / Current Consumption | 26 W |
| Power Linking | 26 Units at 120 VAC 50 Units at 230 VAC |
| Environmental Resistance | No |
| Mounting | Mounting Bracket |
| Included Accessories | 1x Power Cable 1x Filter |
| Duty Cycle | No |
| Exterior Color | Black |
| Certifications | CE, cETLus, FCC |
| Dimensions | 22.5 x 4.2 x 2.96" / 571.5 x 106.7 x 75.18 mm |
| Weight | 4.4 lb / 2 kg |
| Package Weight | 5.71 lb |
| Box Dimensions (LxWxH) | 23.7 x 6.4 x 5" |
