Elation Professional MAX Profile Overview
- 1Description
- 2Features
- 3Color
- 4Gobos
- 5Effects
- 6Control / Connections

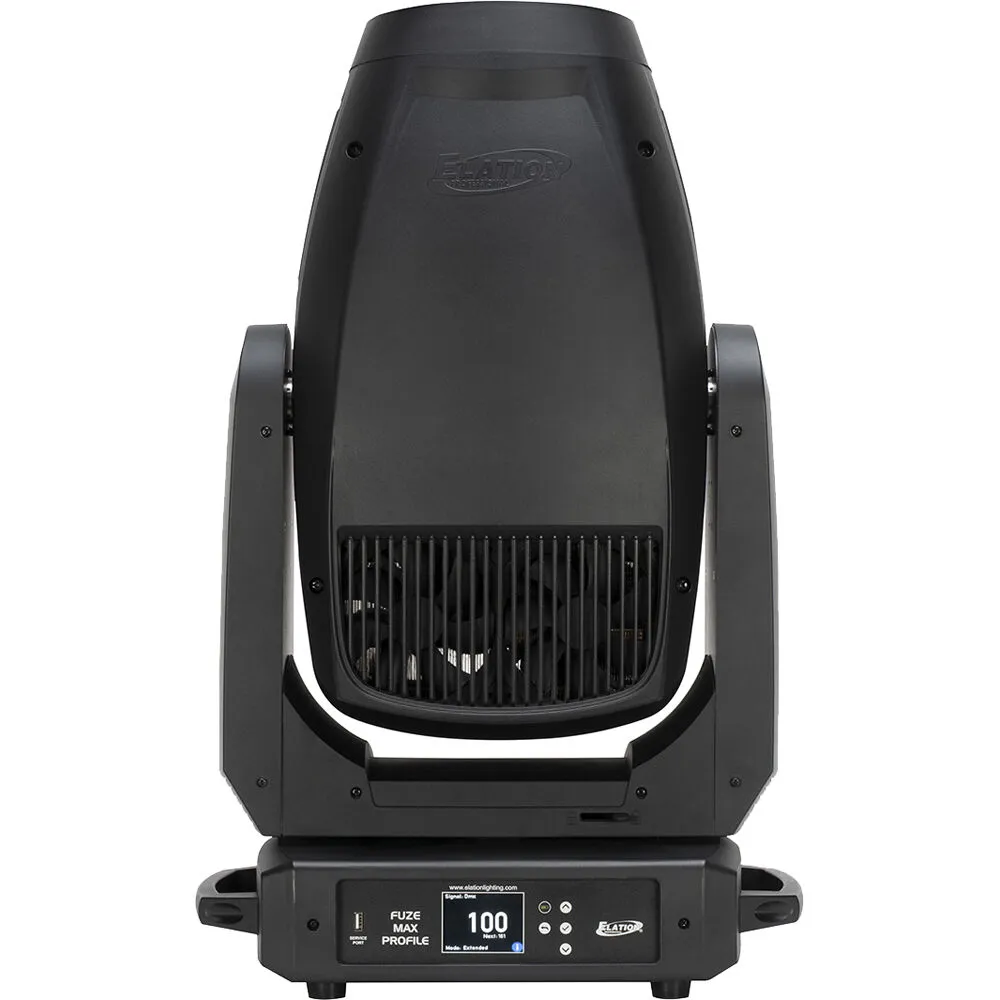

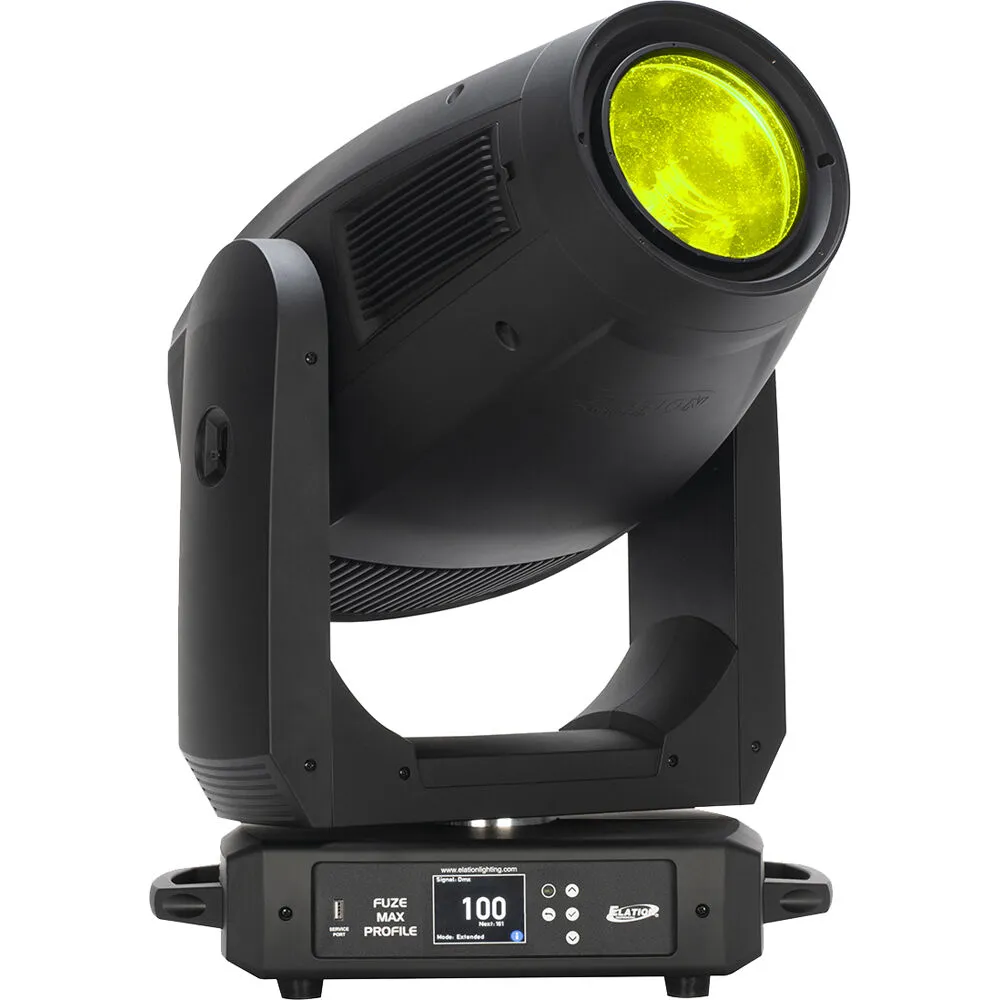

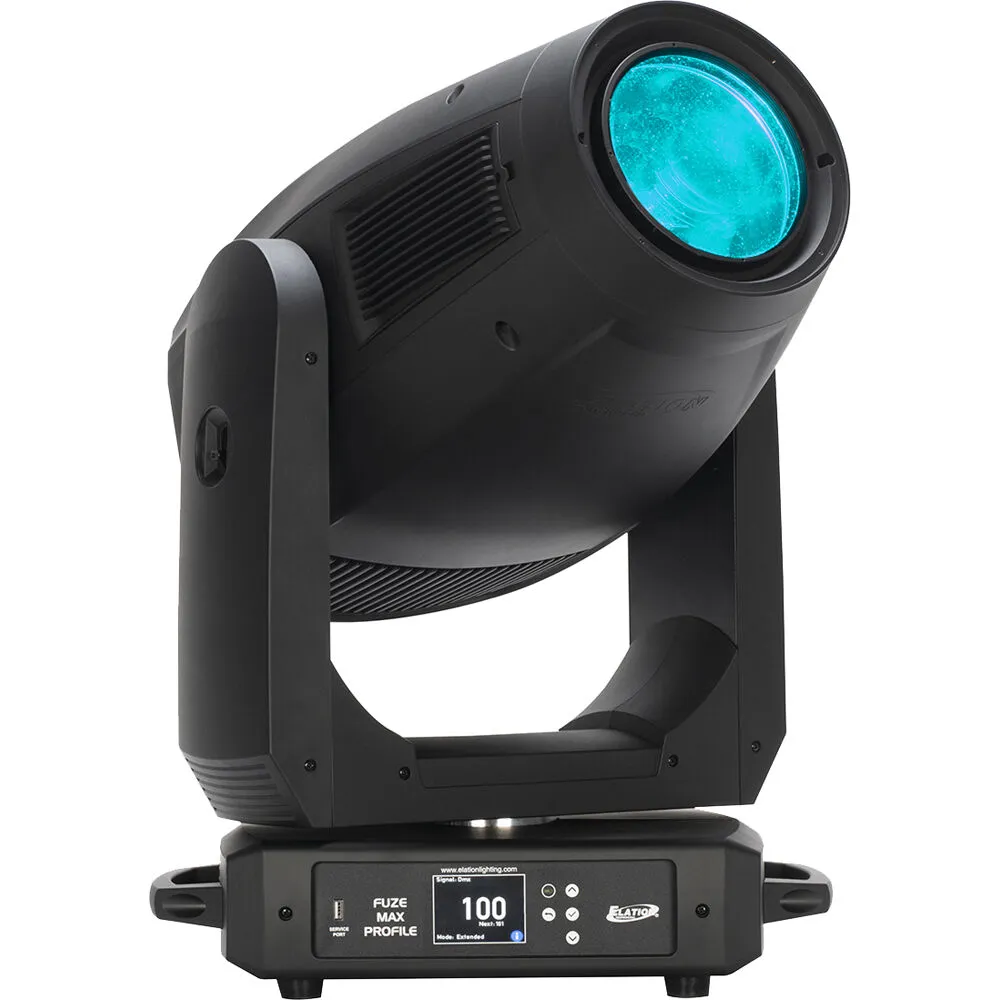

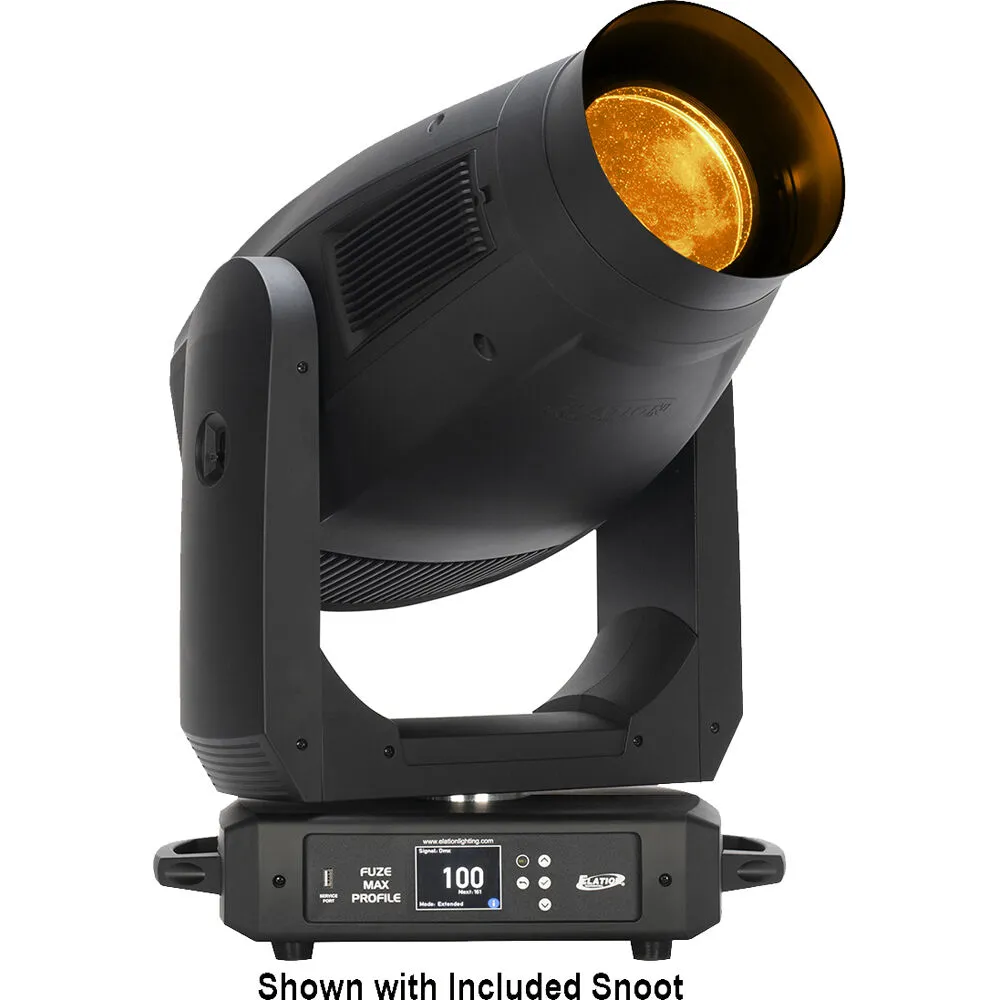

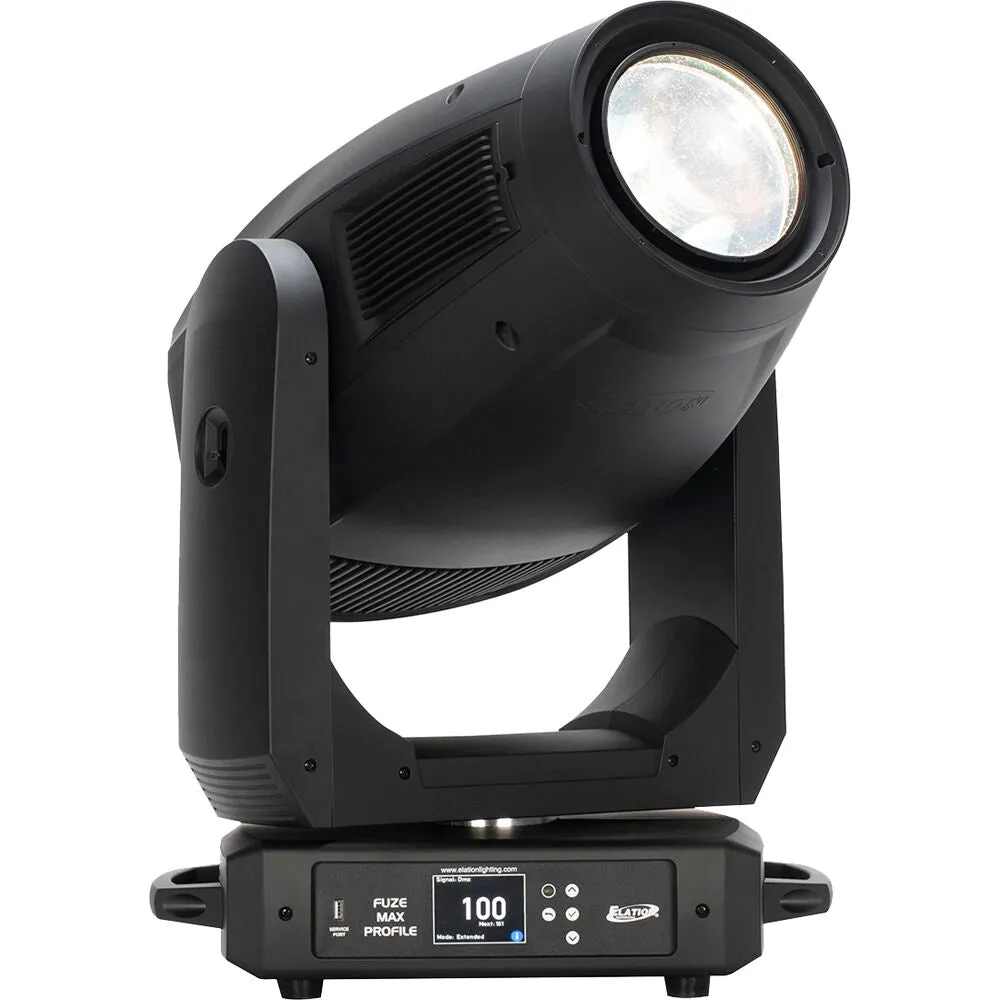

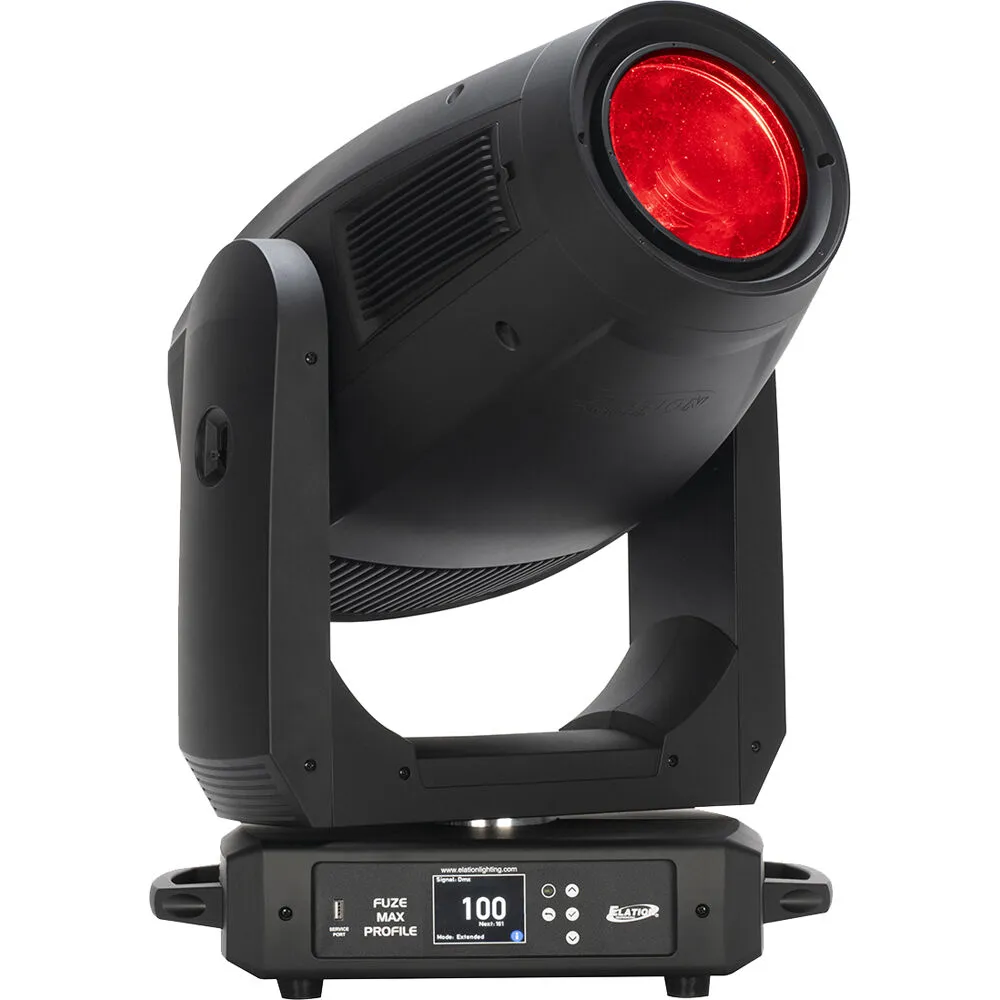

The Elation Professional Fuze Max Profile Automated LED Framing Fixture is a full spectrum automated LED framing fixture designed for theater, television, and a wide array of other precision lighting applications. The 92 CRI engine utilizes an 800W 5-color homogenized LED array consisting of red, green, blue, mint, and amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of over 21,000 lumens. Virtual color temperature, magenta/green adjustment, and CMY emulation provide the designer with immediate access to the impressive LED color array.
The Fuze Max Profile is designed for any application where a fully automated framing fixture with outstanding and compelling color range and quality is required. A rotating gobo wheel, fixed gobo wheel, animation wheel, dual frost, prism, and iris round out its comprehensive feature set in this quiet and extremely powerful automated framing fixture.
- Full-spectrum 800W RGBMA LED engine
- Precise dynamic whites from 2400 to 8500K
- Instant color changes; natural color transitions
- Rich and intense primary colors
- Rotating and fixed gobos plus animation wheel
- Full blackout framing system
- Iris, prism, and dual frost
- Wide zoom range from 7 to 53°
- Large 140mm front aperture
- RGBMA color array
- CMY emulation
- Virtual color correction
- Green/magenta shift
- Virtual gel swatch book
- 6 rotating/indexing interchangeable glass gobos
- 7 fixed interchangeable glass gobos
- Animation wheel
- Motorized zoom
- 4 rotating full blackout framing blades, /- 60° index
- Dual variable frost filter (medium/ wash)
- 4-facet round, 4-facet linear prism
- Motorized iris
- Variable 16-bit dimming curve modes
- High-speed electronic shutter and strobe
- 4 DMX channel modes (RGBMA 40/61) (CMY 38/57)
- 16-bit pan, tilt, and dimming Control
- DMX adjustable LED frequency
- DMX, RDM, Art-NET, and sACN protocol support
- 4-button touch-control panel
- Full color 180° reversible LCD menu display
- 16-bit resolution adjustable movement
- 5-pin DMX in/out
- Locking Ethernet in/out
- IP65 locking power in
- Wired digital communication network
In the Box
- Elation Professional Fuze Max Profile Automated LED Framing Fixture
- 2 x Omega Bracket
- IP65 Rated Twist-Lock Power Cable
User Manual
5.6 MB
- Description
- Features
- Color
- Gobos
- Effects
- Control / Connections
Elation Professional MAX Profile Specs
| Fixture Type | Moving Head |
| Light Source | Color LED - 800 W |
| Light Source Life Expectancy | 30,000 Hours |
| Colors | Red Green Blue Mint Amber Cyan Magenta Yellow |
| Photometrics | 50°: 3045.4 fc / 32,782 Lux at 3.3' / 1 m 121.8 fc / 1311 Lux at 16.4' / 5 m 30.5 fc / 328 Lux at 32.8' / 10 m |
| Color Temperature | 2400 to 8500K |
| Lumen Output | 21,000 Lumens |
| Beam Angle | 7 to 50° |
| Field Angle | 8 to 55° |
| Shutter / Strobe | Electronic |
| Iris | Yes |
| Focus | Motorized |
| Zoom Adjustment | Motorized, 7 to 53° |
| Dimming | 16-Bit 0 to 100% with 6 Dimmer Modes |
| Prism | 4-Facet Circular 4-Facet Linear |
| Operating Modes | DMX, Primary/Secondary, Program |
| Macros / Programs | 16 x Internal Program 31 x Framing Macro |
| Effects | Framing Frost Filter Strobe |
| Gobos | 13 x Removable Glass Gobo 1 x Animation Wheel |
| Gobo Size | Glass Gobo: Outer Diameter: 1.18" / 29.97 mm Max Image Size: 0.98" / 24.89 mm Max Thickness: 0.04" / 1.02 mm |
| Color Accuracy Index | CRI: 92 |
| Refresh Rate | 900 Hz to 25,000 Hz |
| Pan/Tilt Inversion | Yes |
| Movement Resolution | 16-Bit |
| Control Protocols | DMX512, RDM, Art-Net, sACN |
| DMX Channel Modes | 4 Mode(s): 40 / 61 / 38 / 57-Channel |
| Display / Controls | LCD / 4-Button |
| Remote Control | None |
| App Compatible | Yes |
| Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output 1 x RJ45 Network Input 1 x RJ45 Network Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x powerCON TRUE1 Output: None |
| Fuse | T 15 A 250 V |
| Power / Current Consumption | 1126 W |
| Power Linking | None |
| IP Rating | IP20 |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Mounting | Floor Base, Omega Bracket |
| Included Accessories | 1 x Power Cable |
| Duty Cycle | None |
| Exterior Color | Black |
| Cooling | Fan (Variable Speed) |
| Certifications | CE, cETLus *as per Manufacturer |
| Dimensions | 28.3 x 23.2 x 18.19" / 71.9 x 58.9 x 46.2 cm |
| Weight | 76.3 lb / 34.6 kg |
