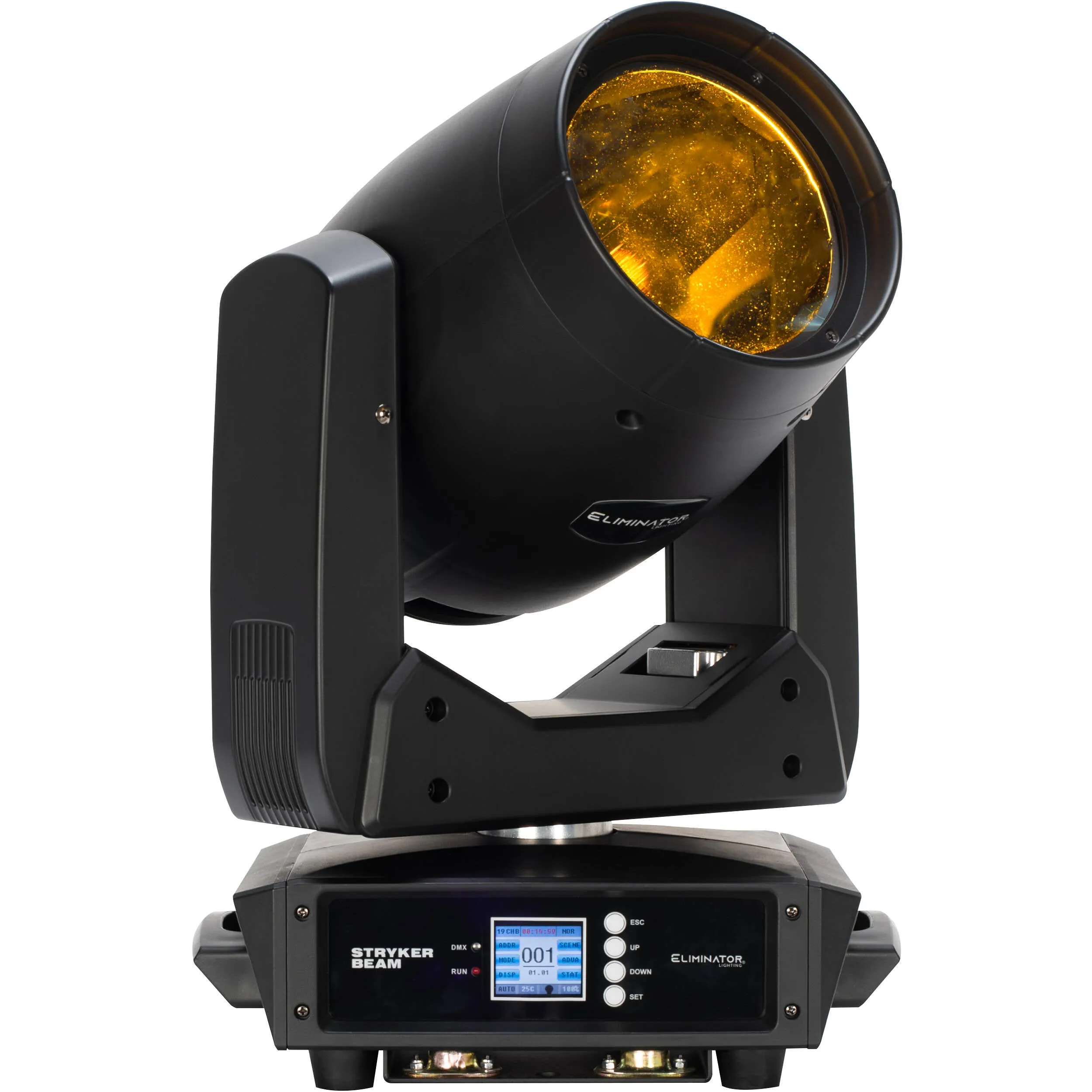

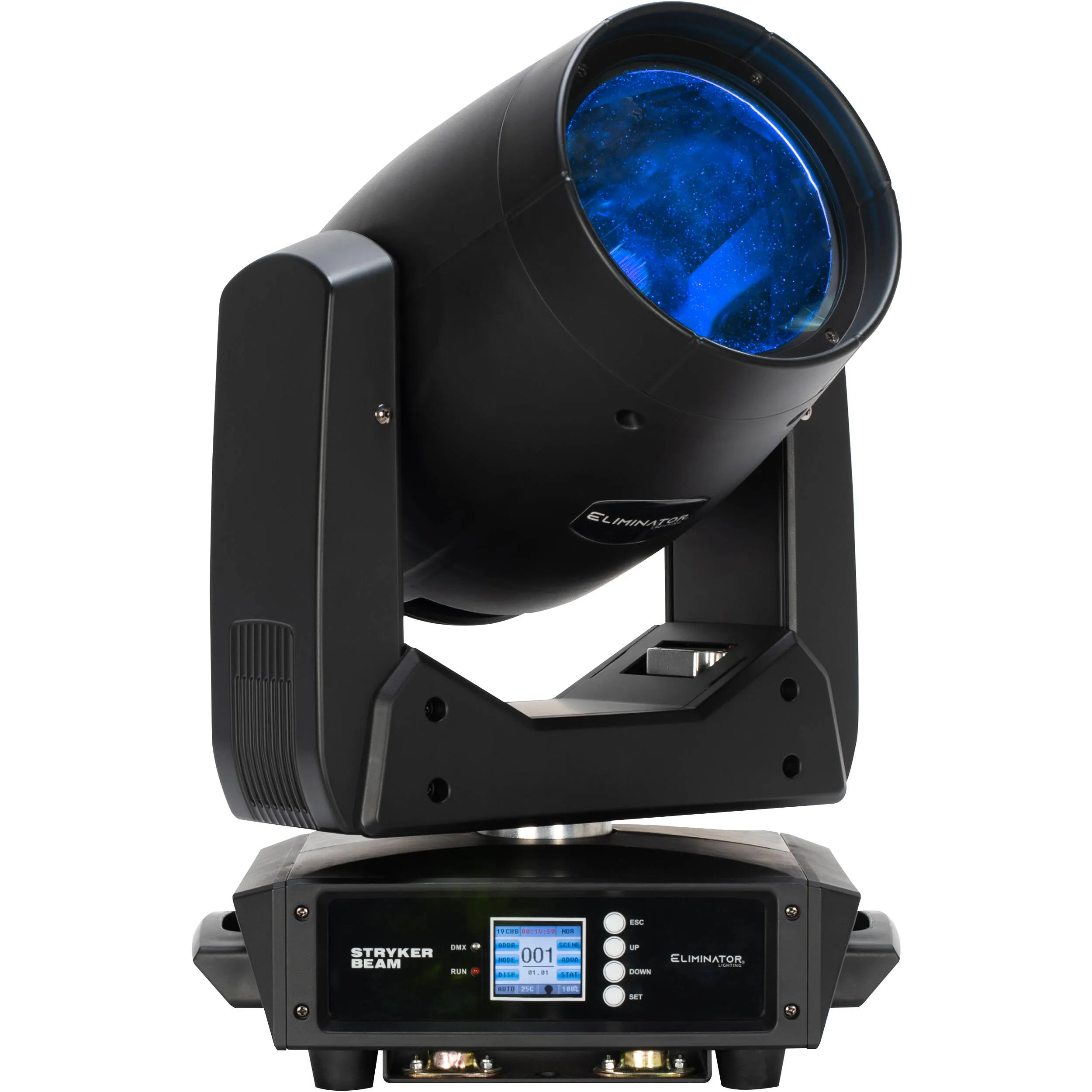

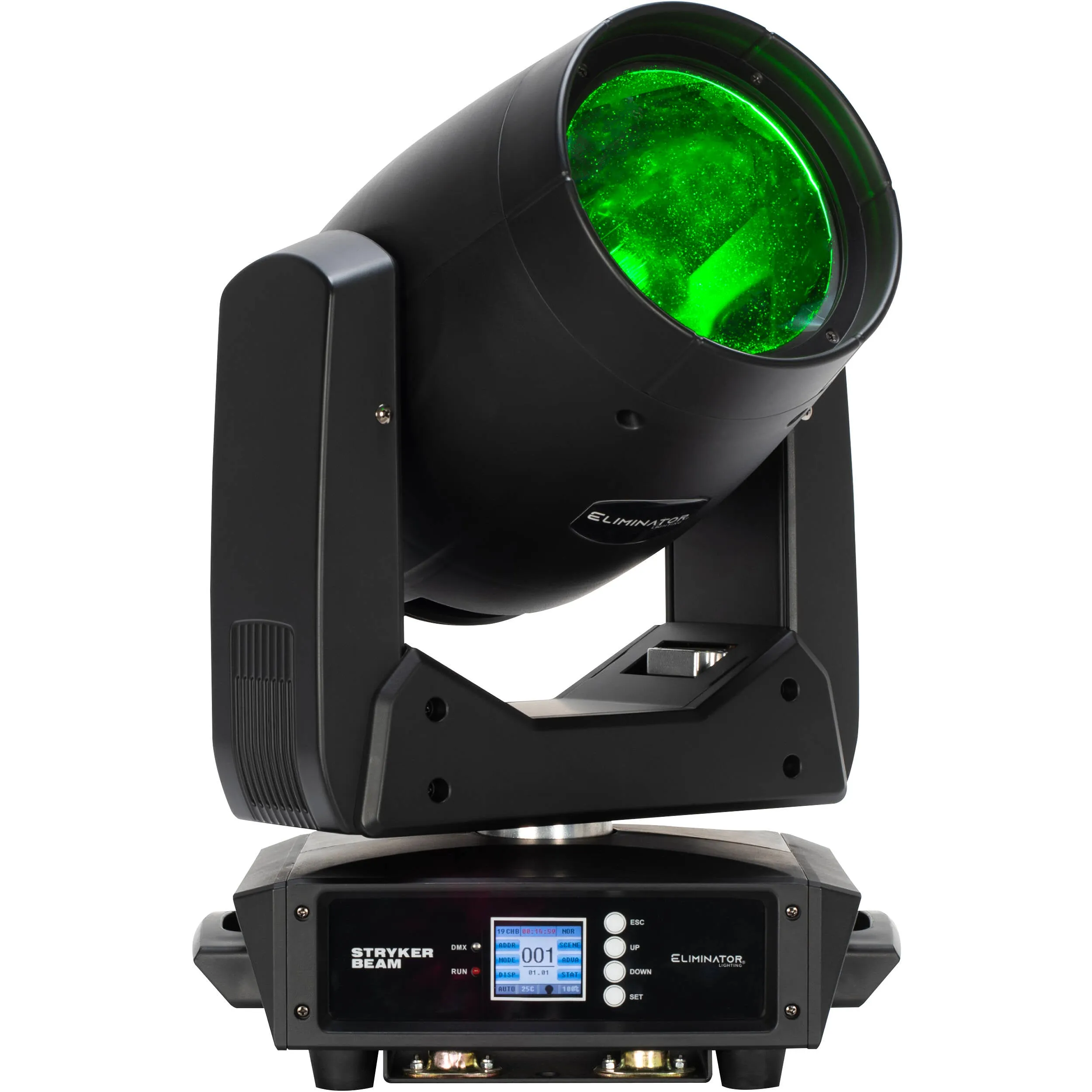

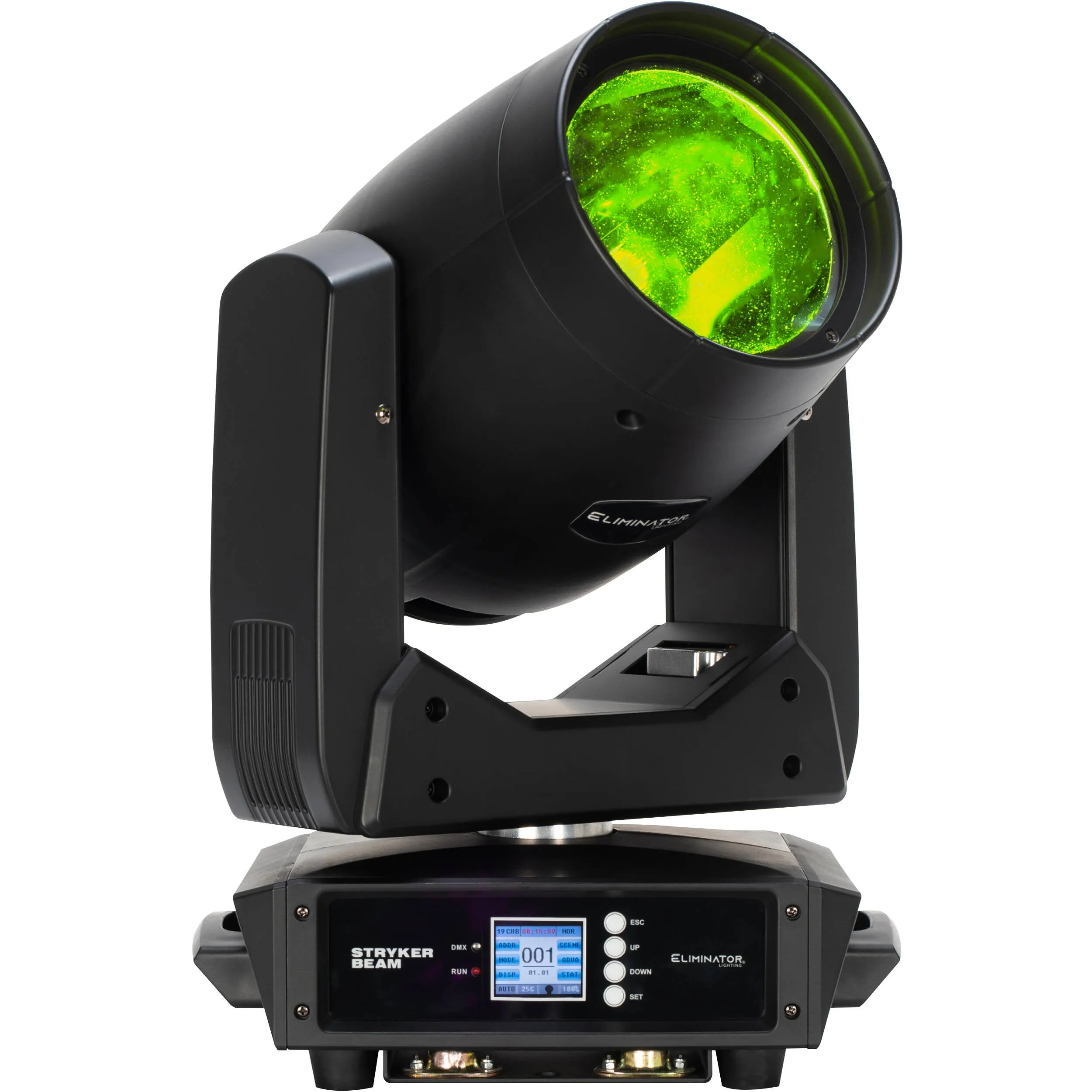

Eliminator Lighting STRYKER BEAM Overview
Lighting designers in need of an intelligent moving head fixture will be impressed with the Eliminator Lighting Stryker Beam, a versatile moving head that's ideal for clubs and other entertainment venues. The head is powered by a single 100W white LED and features a color wheel with 13 colors plus open and a rotating metal gobo wheel with 11 patterns.
Additionally, an 8- and 16-facet prism splits up the narrow 6° beam into a wider break-apart effect and both prisms may be layered for an animated effect. A 6-color flag adds a new multi-color effect. Its motorized focus helps soften beam edges while the integrated frost filter provides a 50° wash effect. Other features include Primary/Secondary, RDM, Auto, and DMX control modes, plus adjustable high-speed pan/tilt movements. An Omega mounting bracket and powerCON power cord are included.
- 100W LED Engine
- 6° beam angle
- Full color function display with 4 buttons
- Fast, precise, pan & tilt movements
- Primary / secondary stand-alone mode
- Motorized focus
- Frost filter (50° wash effect)
- 13 colors open
- Separate 6-color flag for multi-color effects
- Metal wheel with 11 GOBOS open (2 are beam reducers)
- GOBO shake effect
- 8-facet rotating circular prism
- 16-facet rotating circular prism
- Prism layering
- 2 DMX channel modes: 6 & 19 channels
- Protocols: DMX-512, RDM, Auto, and Primary/ Secondary control modes
- Electronic dimmer: 0 to 100%
- Variable strobe: 0 to 20 HZ
- With wired digital communication network
In the Box
- Eliminator Lighting Stryker Beam 13-Color LED Beam Moving Head
- powerCON Power Cord
- Omega Bracket
- Limited 1-Year Manufacturer Warranty
User Manual
2.4 MB
Eliminator Lighting STRYKER BEAM Specs
| Fixture Type | Moving Head |
| Light Source | 1 x White LED - 100 W |
| Colors | Aqua, Blue, Dark Yellow, Green, Light Green, Orange, Pink, Purple, Red, Split Colors, White, Yellow |
| Beam Angle | 6 to 50° |
| Control Protocols | DMX512 |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| Power / Current Consumption | 150 W |
| Environmental Protection | Advertised as Dust Resistant *Manufacturer Testing: IP20 |
| Mounting | Omega Bracket |
| Fixture Type | Moving Head |
| Light Source | 1 x White LED - 100 W |
| Expected Lamp Life | 50,000 Hours |
| Colors | Aqua, Blue, Dark Yellow, Green, Light Green, Orange, Pink, Purple, Red, Split Colors, White, Yellow |
| Beam Angle | 6 to 50° |
| Shutter / Strobe | Electronic |
| Focus | Motorized |
| Zoom Adjustment | No |
| Dimming | 0 to 100% |
| Operating Modes | Automatic, DMX, Primary/Secondary, Standalone |
| Macros / Programs | Auto-Program |
| Effects | Strobe Color Scroll Color Split Color Strobe Frost Filter Gobo Scroll Gobo Shake Strobe |
| Strobe Rate | 0 to 20 Hz |
| Gobos | 11 x Fixed Metal Gobo |
| Tilt Ranges | 270° |
| Pan Ranges | 540° |
| Movement Resolution | 16-Bit |
| Control Protocols | DMX512 |
| DMX Channel Modes | 2 Mode(s): 6 / 19-Channel |
| Display / Controls | LCD / 4-Button |
| Remote Control | No |
| Mobile App Compatible | No *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |

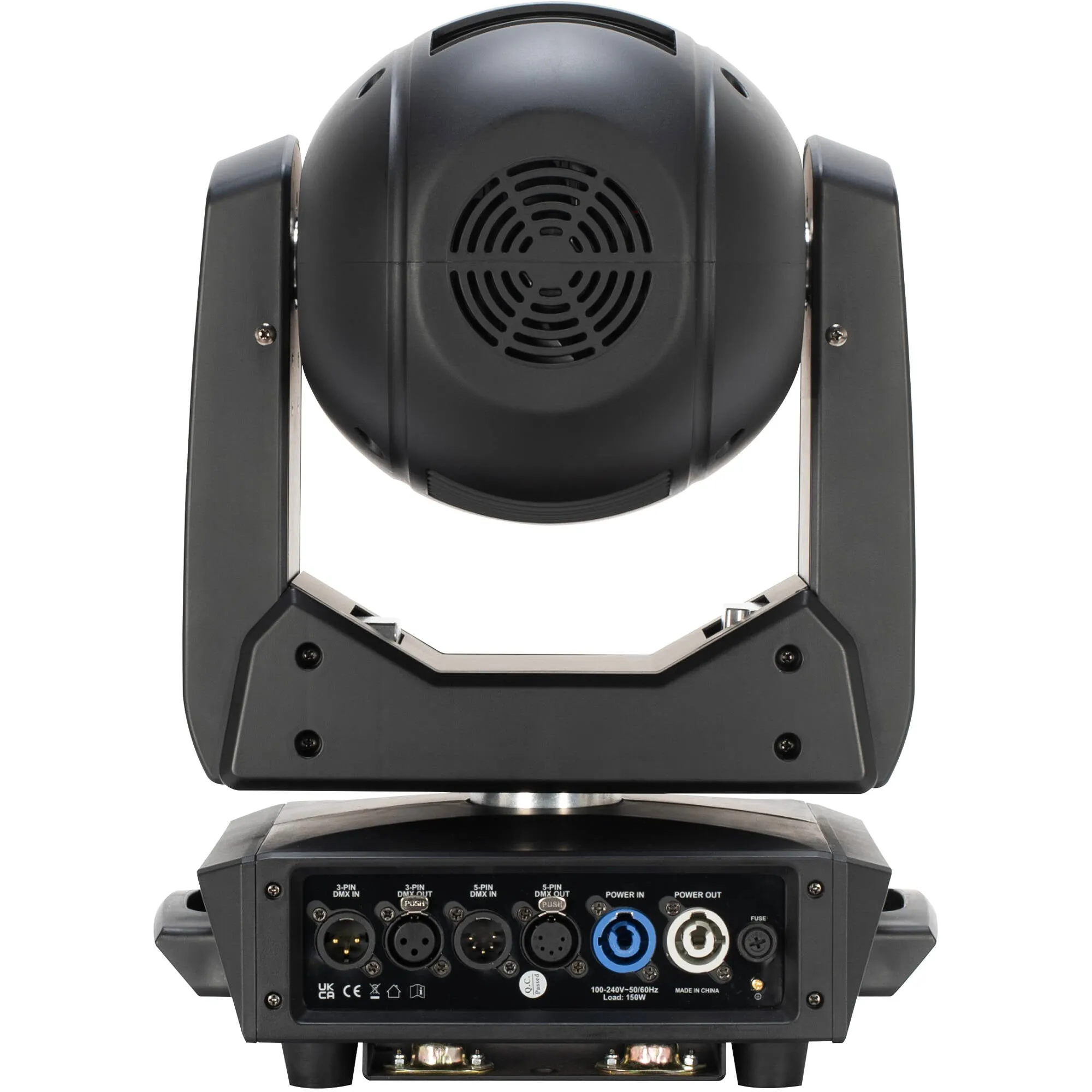

| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x powerCON Output: 1 x powerCON |
| Fuse | No |
| Power / Current Consumption | 150 W |
| Power Linking | 2 Units at 120 VAC 3 Units at 230 VAC |
| Environmental Protection | Advertised as Dust Resistant *Manufacturer Testing: IP20 |
| Mounting | Omega Bracket |
| Included Accessories | 1 x Power Cable |
| Duty Cycle | No |
| Exterior Color | Black |
| Cooling | Fan (Variable Speed) |
| Dimensions | 18.3 x 11.9 x 7.9" / 46.5 x 30.2 x 20.1 cm |
| Weight | 29 lb / 13.2 kg |
| Package Weight | 33.87 lb |
| Box Dimensions (LxWxH) | 19.8 x 15.5 x 14.6" |
