Eliminator Lighting STRYKER SPOT Overview
Fun Lighting Effects for DJ Events: From Disco Balls to Laser Beams

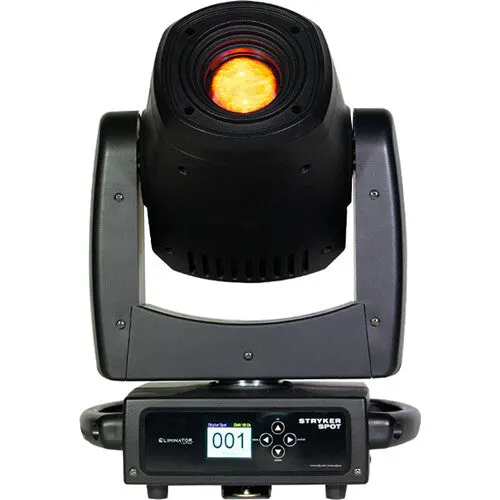

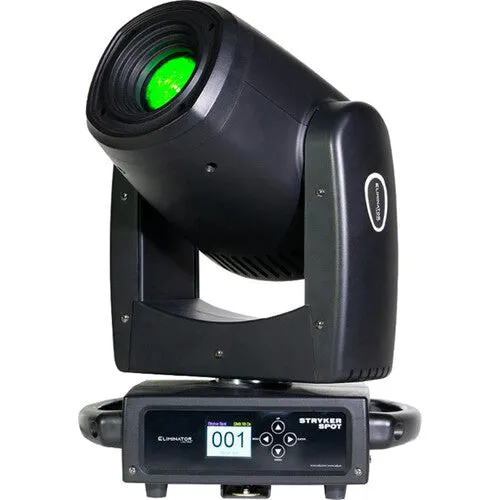

Create eye-catching mid-air effects with the Eliminator Lighting Stryker Spot, a versatile automated spot luminaire with quick movement, impressive output, and remarkable versatility well suited for mobile entertainers and event companies as well as for integrators supplying bars, nightclubs, and other entertainment venues.

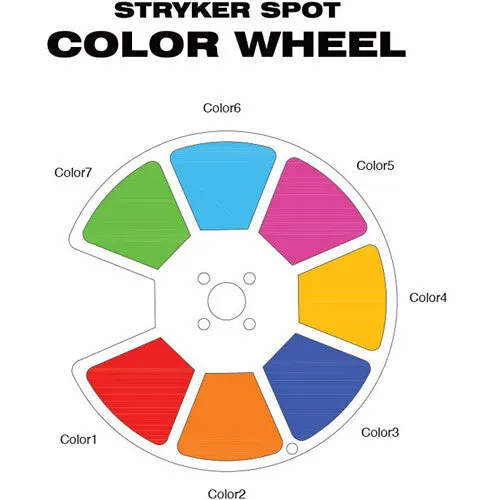

The Stryker Spot is powered by a potent 150W cool white LED engine with 8 fixed static and 6 replaceable rotating GOBOs, on independent wheels, alongside a separate 7-slot dichroic color wheel. There are also two rotating prisms (5-facet linear and 6-facet circular) and a motorized zoom which provides a variable beam angle of 9 to 14° as well as a motorized focus for sharp pattern projections over varying distances. The fixture offers pan and tilt ranges of 540 and 210°, respectively, while 16-bit fine control allows for smooth movement as well as precise positioning. A locking power cord and Omega bracket.
- Rotating gobo wheel: 6 gobo open
- Effect wheel: Two effect prism one (rotation six prism, one rotation five prism effect move, bidirectional rotation)
- Display: LCD display
- IP rate: IP20
Items Included
- Eliminator Lighting Stryker Spot 7-Color LED Moving Head
- Omega Bracket
- Power Cord
- Limited 1-Year Manufacturer Warranty
Additional Resources
User Manual
3.5 MB
Eliminator Lighting STRYKER SPOT Specs
| Fixture Type | Moving Head / Spotlight |
| Light Source | 1x White LED - 150 W |
| Colors | Blue, Green, Orange, Pink, Red, Teal, White, Yellow |
| Beam Angle | 9 to 14° |
| Control Protocols | DMX512 |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| Power / Current Consumption | 180 W |
| Mounting | Omega Bracket |
| Fixture Type | Moving Head / Spotlight |
| Light Source | 1x White LED - 150 W |
| Expected Lamp Life | 50,000 Hours |
| Colors | Blue, Green, Orange, Pink, Red, Teal, White, Yellow |
| Beam Angle | 9 to 14° |
| Iris | No |
| Focus | Motorized |
| Zoom Adjustment | Motorized |
| Dimming | Electronic, 0 to 100% |
| Prism | 6-Facet Circular (Rotating) 5-Facet Linear (Rotating) |
| Operating Modes | Automatic, DMX, Primary/Secondary, Sound-Active |
| Macros / Programs | 8x Auto-Program 8x Show |
| Effects | Strobe Gobo Shake |
| Gobos | 8x Fixed Metal Gobo 6x Removable Metal Gobo |
| Tilt Ranges | 210° |
| Pan Ranges | 540° |
| Pan/Tilt Inversion | Yes |
| Movement Resolution | 16-Bit |
| Control Protocols | DMX512 |
| DMX Channel Modes | 2 Mode(s): 16 / 18-Channel |
| Display / Controls | LCD / 4-Button |
| Remote Control | Yes |
| Mobile App Compatible | No |

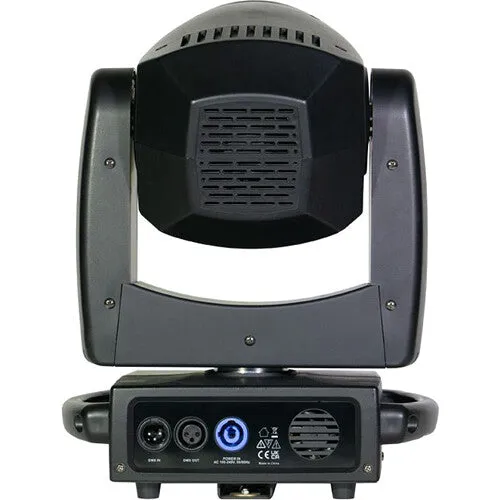

| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
| Wireless | No |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1x powerCON Output: 1x None |
| Power / Current Consumption | 180 W |
| Environmental Resistance | No |
| Operating Conditions | 7 to 77°F / -25 to 45°C |
| Mounting | Omega Bracket |
| Included Accessories | 1x Power Cable |
| Duty Cycle | No |
| Exterior Color | Black |
| Cooling | Fan |
| Certifications | CE, cETLus |
| Dimensions | 16.4 x 11.5 x 7" / 41.7 x 29.2 x 17.8 cm |
| Weight | 19 lb / 8.6 kg |
| Package Weight | 26.59 lb |
| Box Dimensions (LxWxH) | 20.2 x 15.3 x 15.1" |
