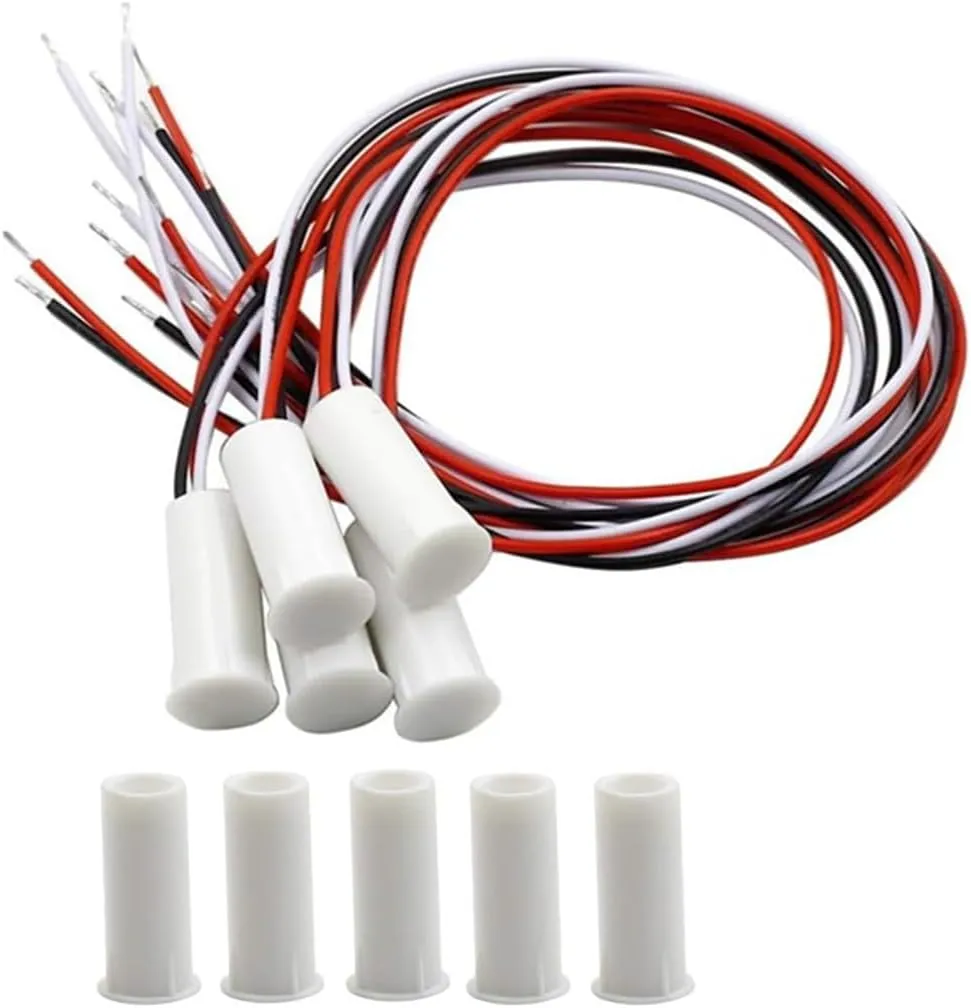

- Product Name: Magnetic Door Switch. Model: RC-35 NC/NO
- Specification: Rated Voltage: 100V;Contact Capacity: 500(mA) (Maximum Switch Current), Rated Power: 10W(Maximum Switch Power); Contact Type: NC/NO/COM,Trigger Range: 15-25mm.
- Normally Open Normally Closed: Use Normally Open or Normally Closed freely, Cable definition: Red for NC, Black for NO, White for common . Cable Length : 25cm/9.8", Overall Size: 25 x 12 mm / 1" x 0.47" (H*D).
- Application: Magnetic door contact reed switch great for door alarm sensor, alarm, LED Switch, Relay, GPS low voltage devices...etc. , Effective for Theft Deterrence. Yes ideal wooden door or window use.
- Package Content: 5 Sets x Magnetic Door Switch
Product Description
Name：RC-35 NC/NO Magnetic Reed Switch.
Feature:
Widely Used - This Recessed Door Contact Sensor works with any access control or burglar alarm system available.
Note - the Magnetic Door Switch must be installed according to the sensing distance. It can only provide a switch signal to the transmitter. It cannot directly load the power, nor directly connect the lamp!
Specification:
Model : RC-35.
Material: ABS.
Rated power: 10W.
Rated current: 500(mA).
Rated voltage: (VDC) 100.
Mounting Type: Recessed.
Anti-fire ABS shield Connecting mode: NC/NO.
Operating distance: more than 15mm, less than 25mm.
Switch Type: NO(normal open type), NO means Normally Open: when the magnet separate, the circuit is not conductive( light on ); When the magnet together, the circuit is conductive ( light ooff ).
Package Includes: 5 Sets x Magnetic Door Window Contact Sensor
