- 【Compatible With】OGRC sensored brushless power system for TRX-4M. With standard interface 5PIN-1.27 terminal sense wire connection. The motor is designed with high power for 1/18 rc crawler car. (Note: it is not fit for other rc models)
- 【Great Performance】The rotor is designed without resistance, the maximum power is 120W, and the power output efficiency is as high as 92%. Ultra-thin (0.2 mm) stator laminations, less iron loss & heat generation, efficiency conversion rate up to 94%.
- 【High-quality Material】Thailand NMB -- High RPM bearings, providing smoother operation, longer life, lower noise, and improved overall tolerances. Aluminum alloy one-piece casing design realizes stable and reliable high-speed operation.
- 【Mini Sensored Brushless ESC】Built-in BEC (config via app) and support 2S lipo battery. Full metal CNC shell, very good heat dissipating. Mini size and lightweight. (Note:Improper wiring may damage the ESC. This ESC uses an electronic switch)

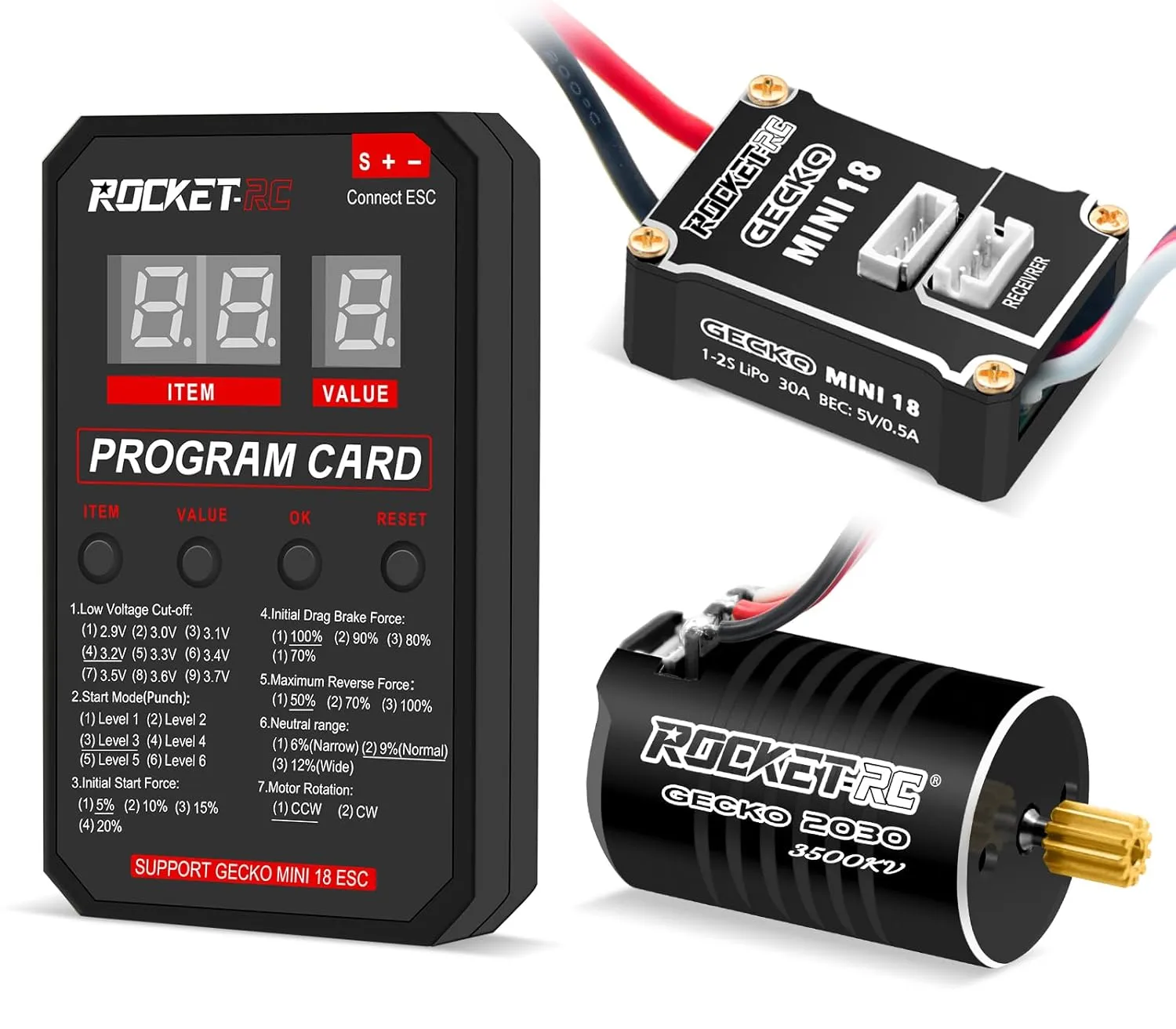

- 【Perfect Combination】OGRC 1/18 scale motor equiped with 30A sensored brushless ESC and ESC LED Program Card Box, so that you can use it without worry. Precision balanced rotor, smoothness for best reliability and maximum 50000 RPM.
Motor Features:
The standard sensor port 5PIN-1.27 terminal sensor wires connection.
Unique stator adopts 0.2mm silicon steel sheet, efficienccy rate can reach 94%
Explosion-proof new magnetic rotor with 2 poles super complaint linear, high speed and withstand up to 200 ℃
Aluminum alloy front integrated case design, stable and reliable operation at high speed.
The turbo angle motor running max RPM 50000.
Motor Specifications:
Item Name: OGRC Sensored Brushless Motor
Model: MINI 2030
Color: Black
Watts: 120W
Max Voltage: 8.4V
Max Amps: 16A
Internal Resistance: 0.051-0.175Ω
Resistance: 0.0043
KV(RPM/Volt): 3500-6800
Max RPM: 50000
Sensor Timing: 0-5°
Length: 57.5mm
Rotor Poles: 2
IO(7.4V): 0.6-1.6A
Shaft Size: Ø2x10mm
Rotor Size: Ø10x15mm
Motor Size: Ø20x31mm
Weight: 35g
There may be some deviation due to manual measurement.
ESC Features:
Small ESC for mini crawler.
Current 30A, powerful output support.
Greatly reduced vehicle weight.
Multi adjustable parameter items support, created for competition.
Full metal CNC housing, perfect combination of shaped and function.
ESC Specifications:
Item Name: OGRC Sensored Brushless 30A ESC
Type: Sensored Brushless Motors for MINI RC Car
Model: MINI 28 PRO Waterproof level: No
Size(LxWxH): 21(L) x 3.8(W) x 11(H)mm
Weigh: 7.6g(including wires)
Voltage Input: 2SLiPo(6V-8.4V)
Peak Current: 80A
Continuous Current: 80A
B.E.C: 6V/7.4 - 3A
Car Applicable: 1/18 1/27 and 1/28
Program Card Box Specifications:
Working Voltage: 6-8.4V
Size: 88 * 58 * 14mm
Weight: 40g
Packing List:
1 * Sensored Brushless 30A ESC
1 * Sensored Brushless Motor
1 * LED Program Card Box
1 * Plasic Gift Box
1 * User Manual
- Date First Available : July 28, 2023
- Manufacturer : OGRC
- Country of Origin : China
